Rice Bran Oil Extraction Process

The rice bran oil solvent extraction process can be used to recover oil from any materials with low oil content, or for pre-pressed oil cakes in order to obtained high oil content.


Leave a message




Rice Bran Oil Extraction Process

Rice bran is the very thin layer of brown rice. It is the main nutritious part of rice. Rice bran is very high in vitamins and nutrients. Rice bran oil, not fiber, lowers cholesterol in healthy, hypercholesterolemia individuals. Because there were no substantial differences in the fatty acid composition of the diets, the reduction of cholesterol is due to another component there in the rice bran oil. Rice bran oil contains natural Vitamin E, flows nicely. It presents moderate penetration and leaves no greasiness or stickiness on the skin. It is an excellent carrier oil. Huatai Oil Machinery provides advanced rice bran oil extraction process technoloy.

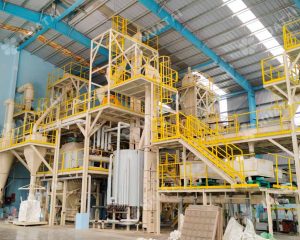

rice bran oil extraction machine

It is better cooking oil because of Rice bran oil characteristics:

1. Most ideal fat composition.
2. RBO is an excellent alternative for those who have an intolerance to other cooking oils because of its hypoallergenic effect.
3. Rice bran oil has a very high smoke or burn point, making it perfect for deep frying, pan or stirs frying.
4. Rice bran oil creates fewer polymers or less greasy than other oils meaning better flavor and easier clean-up.
5. Food cooked with this oil absorbs up to 15% to 20% less oil. This unique property of less oil absorbing and light viscosity effects in reduced calories, better-tasting food, economical and enhanced flavor, and palatability.
6. RBO has excellent oxidation stability.

Let us find out the process of Rice bran oil extraction:

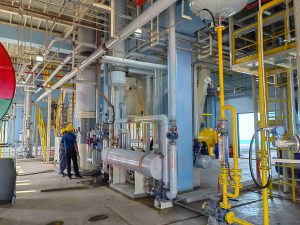

rice bran oil solvent extraction process

Usually obtaining rice bran oil by extraction of rice bran which is a by-product of the rice milling industries. There are several techniques for the extraction process of the Rice bran oil, but solvent extraction with hexane is the most popular used conventional process for commercial extraction.

Rice bran oil expelling relies on very high-quality rice bran oil expellers. After putting the well-set rice bran into the feeder of the expeller, a screwworm will transport the rice bran advance. As the screwworm moves, space becomes smaller, thus squeezing Rice bran oil out. Then the fresh RBO seeps out through the small openings in the bottom of the squeezing barrel where the rice bran oil cake cannot pass through and separating rice bran oil from oil cake.

After collecting Rice bran oil cake, rice bran oil extraction comes with the help of food grade solvent, generally hexane. Principle of Rice bran oil extraction works on the countercurrent and moving the bed with variable bed height and different speed mechanism to make sure the permit of excellent penetration and percolation of solvent for absolute extraction. Then the distillation process begins in the vacuum, and the collecting the extracted rice bran oil by vaporizing solvent out for later recovery.

Mechanical pressing (Cold pressing):

Mechanical pressing is traditionally the most popular oil extraction process for oilseeds globally. It is particularly by small and medium scale oil extraction industries for commercial rice bran oil extraction in some countries like Thailand. The procedure is less expensive and less labor-intensive than using solvent extraction methods. The safety and simplicity of the procedure is an advantage over the efficient solvent extraction techniques. This process does not involve heat or chemical treatment, thus making it an interesting alternative for conventional practices because of consumer concern for a natural and safe product.

The mechanical pressing process consist of two types, screw, and hydraulic press. The screw press is very simple, easy to maintain and operate by semi-skilled workers. In comparison, the screw press or expeller is continuous and produces a slightly higher yield than the hydraulic press.

The process involves continuous pressing using expellers (Screw press)

Expellers consist of a screw rotating inside a cylindrical cage or barrel and fedding the material between the screw and the barrel, and then propelled by the rotating screw in a direction parallel to the axis. The gradual increase in pressure help to discharge the oil, which comes out of the press through the slots provided on the periphery of the barrel and the residual pressed cake move in the direction of the shaft for discharge.

However, for the extraction process of RBO using this method, only about 9 to 10% of the bran weight was found by pressing. Extraction of oleiferous seeds by these methods revealed about 80 to 85%, while it was 75% oil can recovered from algae. Although mechanical pressing results in high-quality oil, the yield is relatively low and its normally for small scale extraction, specialty products or as a pre-press operation in a large scale solvent extraction plant. To make this process more effective, further modification in the design is required which will help to increase the oil recovery.

rice bran oil extraction machine

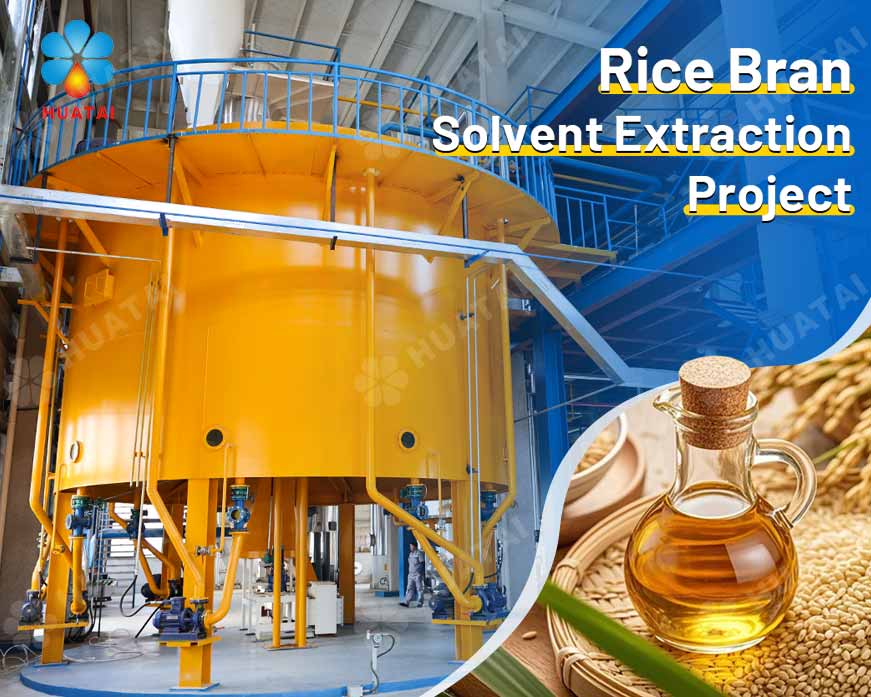

Rice Bran Solvent Extraction Process:

The Rice Bran Oil Solvent Extraction Process can recover oil from any materials with low oil content, or for pre-pressed oil cakes in order to obtain high oil content. Hexane is the most normally solvent for this method, it is relatively cheap and excellent for oil extraction. Some short chain alcohols such as ethanol and isopropanol, have been proposed as an alternative solvent for the extraction process because of their greater safety.

To get the yield of about 92% of the oil from the hexane extraction process of ohmic heating-stabilized rice bran. About 42.7 to 99.9% yield of oil from rice bran using ethanol to rice bran ratio of 2.5:1 and 4.5:1, and temperature of 60-90°C.

Increasing the extraction temperature from 40°C to 60°C, and solvent (hexane and isopropanol) to bran ratios (w/w) of 2:1 and 3:1 increased the RBO yield. Extraction at 60°C for ten minutes with  3:1 solvent to bran ratio using hexane solvent yielded about 3.6% more oil, while extraction with isopropanol produces 6.4% more oil than at 40°C. The yield of liquid propane was created to yield about 22.4% of oil in kg of rice bran at 0.76 MPa and ambient temperature.

Extracted RBO with isopropanol and hexane at 40°C for 15 min. The hexane extracts almost 40% more oil than the isopropanol solvent, though increasing the temperature up to 120°C.  The yield of hexane solvent did not increase, but the isopropanol extracted 25% more rice bran oil than hexane under similar conditions. About 99 to 99.5% of the oil from solvent extraction from oleiferous seed.

The crude Rice bran oil obtained from this extraction procedure, which is mostly further subjected to chemical or physical refining to meet the specifications of food-grade vegetable oil. The organic solvent (usual hexane) mainly is, however, flammable, volatile, toxic and pollutes the environment. Even though the use of hexane for extraction is efficient and widely uses, it has some undesirable as mentioned earlier.
