Introduction:

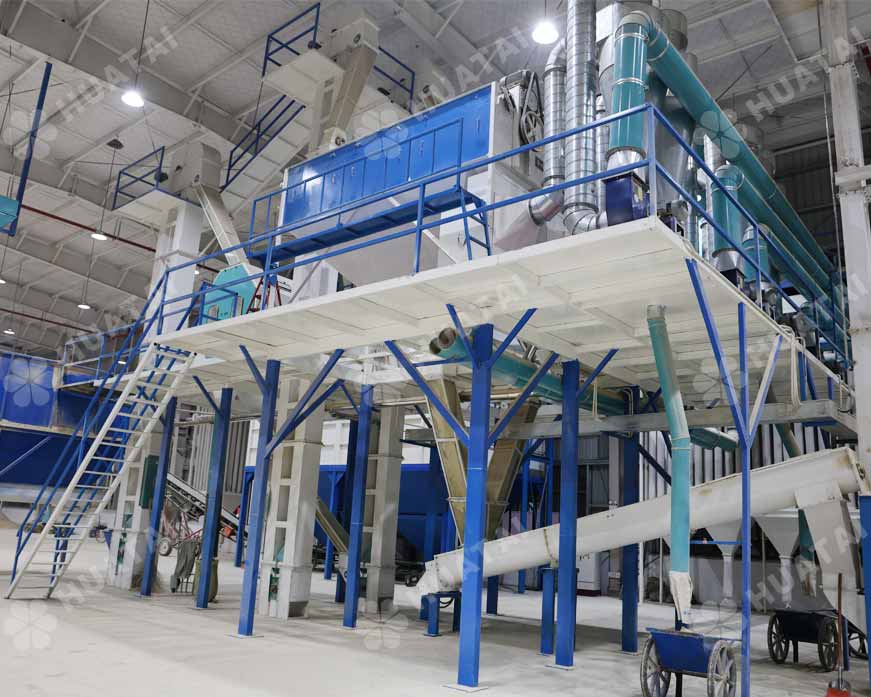

500TPD rice bran oil production line mainly includes rice bran pretreatment section, rice bran oil solvent extractinon section and rice bran oil refining section.
Raw Material: Rice bran
Main Equipment: Magnetic selector, rice bran and tips separation sieve, elevator, softening pot, cooker, towline extractor, condenser, filter equipments, dewax tank, deacidification tower, crystallization tank, maturing tank, deodorization tower, crude oil tank, heat exchanger, mixing tank.
Description: Rice bran pretreatment, rice bran oil extraction and refining machine projects is a type of high efficiency rice bran oil processing machine which successfully turns waste rice bran raw material into healthy rice bran oil with low production and high capacity. This rice bran oil machine project has enjoyed high reputation in Bangladesh market.
Section 1: Rice Bran Pretreatment and Extrusion
Rice Bran Receiving: Fresh rice bran from the rice mill enters the rice bran oil processing workshop via a scraper conveyor.
Cleaning: The rice bran passes through equipment such as vibrating screens and magnetic separators to remove broken rice, husks, stones, and metal impurities. The cleaning effect directly affects subsequent equipment and oil quality.
Conditioning and Softening: The cleaned rice bran enters a conditioning tank or softening pot. By adjusting the moisture content and temperature (usually heated to 60-70°C), it reaches the optimal physical state for extrusion, increasing the oil yield.
Extrusion: This is the core of rice bran pretreatment process. The conditioned rice bran enters an extruder, where the cell structure is thoroughly destroyed under high temperature (110-130°C), high pressure, and high shear, releasing the oil.
Cooling and Drying: The high-temperature extruded material needs to be cooled by a cooler for safe storage and entry into the rice bran oil extractor.
Section 2: Rice Bran Oil Solvent Extraction
Solvent Extraction: The cooled, expanded rice bran enters the rice bran oil extractor, where it comes into countercurrent contact with a solvent (usually n-hexane). This extracts over 98% of the oil from rice bran, forming the miscella (a mixture of oil and solvent) and wet meal (defatted rice bran containing solvent).
Miscella Processing: The mixed oil undergoes filtration, evaporation, and stripping to completely separate the solvent, yielding crude rice bran oil.
Wet Meal Processing: The wet meal enters a steam descaling machine, where steam heating removes the solvent, resulting in qualified finished rice bran meal (a high-quality feed ingredient).
Solvent Recovery: All recovered solvent is condensed and recycled, resulting in extremely low loss.
Section 3: Rice Bran Oil Refining
The main process of rice bran oil refinery plant are: crude oil → degumming → deacidification → bleaching → filter → deodorization → dewaxing → refined oil.
Decoloring section is used to remove off pigments, bleaching oil and grease dehydrate;
Deodorizing section is used to remove off the odor components in oil;
Dewax is used to remove off the wax in oil, in order to get the high quality oil;
Heat transfer oil stove is supply each device production needing heat energy, temperature reach above 280 centigrade;
Steam generator provides the needing steam for deodoring and distillation;
Vacuum pump supplies vacuum for dehydrate, decolor, filter clay, filter out clear oil;
Air compressor blow dry bleached clay, blow empty the leftover oil in the press filter.
Our patented product, rice bran expanding and extraction equipment obtained Scientific Achievement Award and outstanding new product award in 2008, also won the second Award of National Scie-Tech progess, Silver Award on the eighteenth National Exhibition of Inventions and Gold Award on the eighteenth National Exhibition of Inventions.Our products sell well in more than 30 provinces, cities and districts, and are exported to Bolivia, Sudan, Kazakhstan, Tajikistan, Malaysia, Russia, Zambia, Vietnam, Thailand, Indonesia and other countries & regions, and now we have developed into a major oil machinery manufacturing base in China.
Our Service
If you have any questions about machinery, or equipment operation for many years and you want to transform the factory, Henan Huatai will solve these problems for you. Henan Huatai Cereals And Oils Machinery Co., Ltd always put product quality and customer interests as the first, insist on the better service tenet, we will provide high quality products according to promise on perfect site services and after-sales service. Specific services is as follows:
1. To provide complete sets of equipment and accessories on time.
2. Henan Huatai will send an engineer to the country of customer for the installation guide, training technicians and operators for the customer.
3. After-assembly Equipment. Our company will be in charge of stand-alone equipment debugging, online debugging and feeding trial run, ensure the normal operation of the equipment in full load condition.
4. Equipment Operation. Equipment has any problems or the customer want to transform and expand the scale of production, all problems you can contact us, we will provide customers the best solution.High quality service is what we are pursuing.
Our service is available all around the world. And our high quality service team is ready to provide you with fast and efficient service from the tailored solutions for competitive production process to free training of complete plant installation.
Why Choose Huatai?
1. Henan Huatai Cereals And Oils Machinery Co., Ltd. has a professional R&D team, continuous innovation, won several national patents, our professional engineer team will design a customized for you to save cost and create more benefit for you and environmental protection of the equipment as soon as possible according to your requirements.
2. Our belief is ” wining through fine process”. Henan Huatai factory workshop covers an area of 100000 square meters, including manufacturing workshop area more than 21600 square meters. Our factory is equipped with a standard professional production workshop, 2 sets machining workshop and 12 sets engineering installation department, etc. Huatai Oil Machinery has all kinds of advanced production and processing equipment 120 units, including lathe, planer, milling machine, drilling machine more than 80 units, 10 sets cut sheet molding equipment, welding equipment with submerged arc automatic welding machine 6 units, dc welding machine, ac welding machine more than 80 sets, also equipped with all kinds of high quality auxiliary equipment and testing equipment. Welcome to visit our factory!
3. Henan Huatai adheres to the principle of “Perfect Delivery”, installation and debugging equipment for you, for your training operators and daily maintenance of machine and some handling daily glitches.
